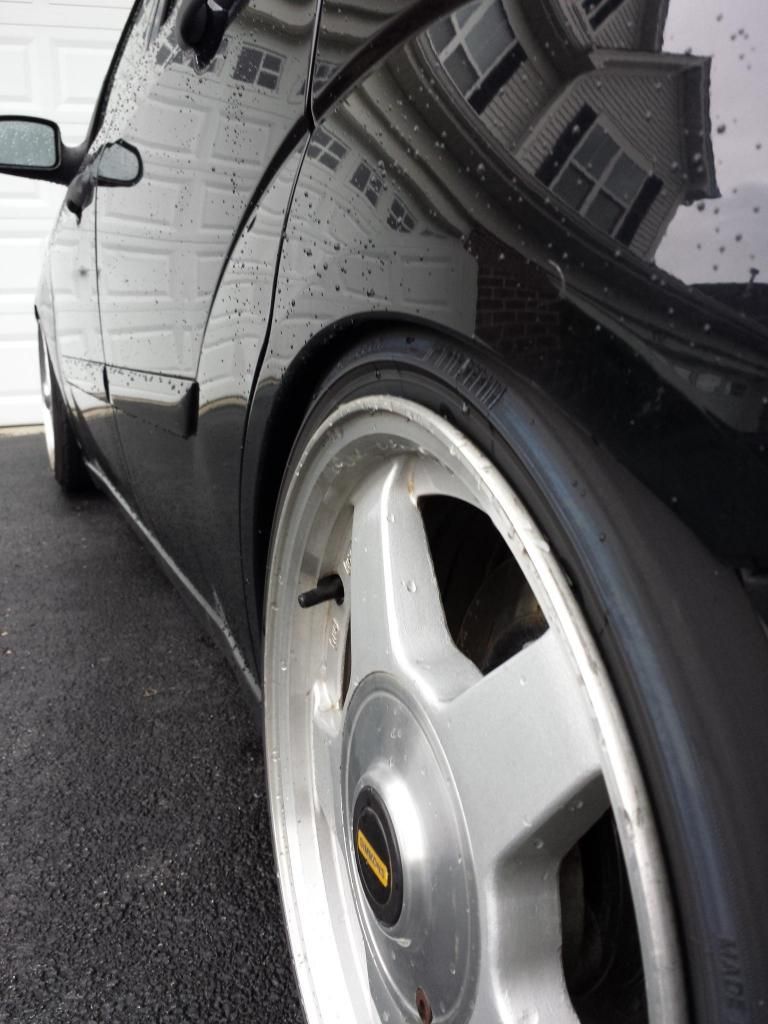

Wheel Brand/model/Spec(size/width/offset):

Sportmax 050, 17x8 ET38 Front, 17x8 ET38 Rear

Tire Brand/model/Spec:

205/40-17 Falken 912

Suspension parts:

KSPORT coilovers, SPC camber arms

Drop(fender heights are acceptable) and alignment spec (camber and TOE!):

FL: 21 5/8" FR: 21 5/8"
RL: 21 3/4" RR: 21 3/4"

Camber---
FL: -1.7° FR: -1.8°
RL: -2.9° RR: -3.1°

Toe---
FL: 0.01° FR: 0.01°
RL: 0.00° RR: 0.00°

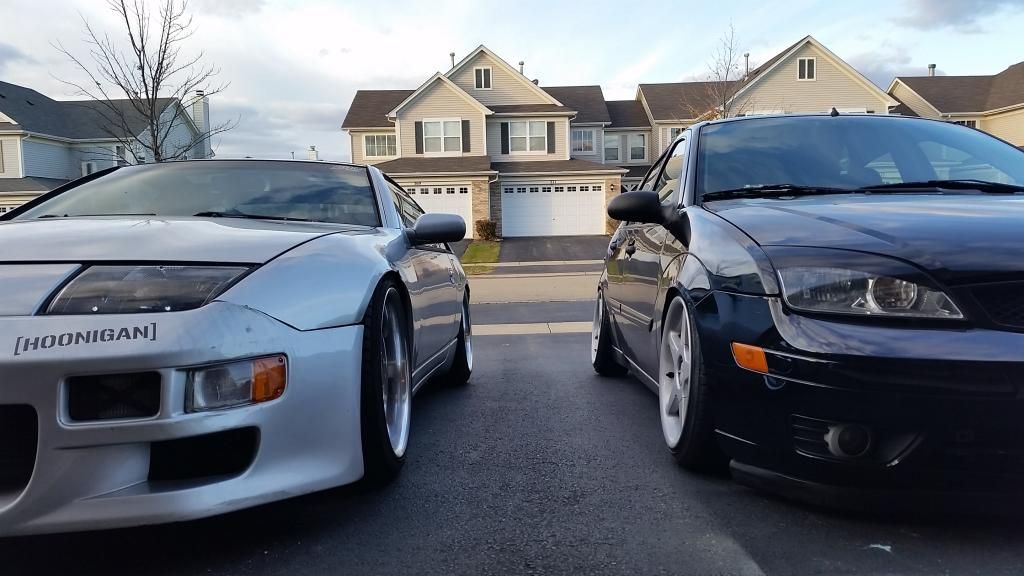

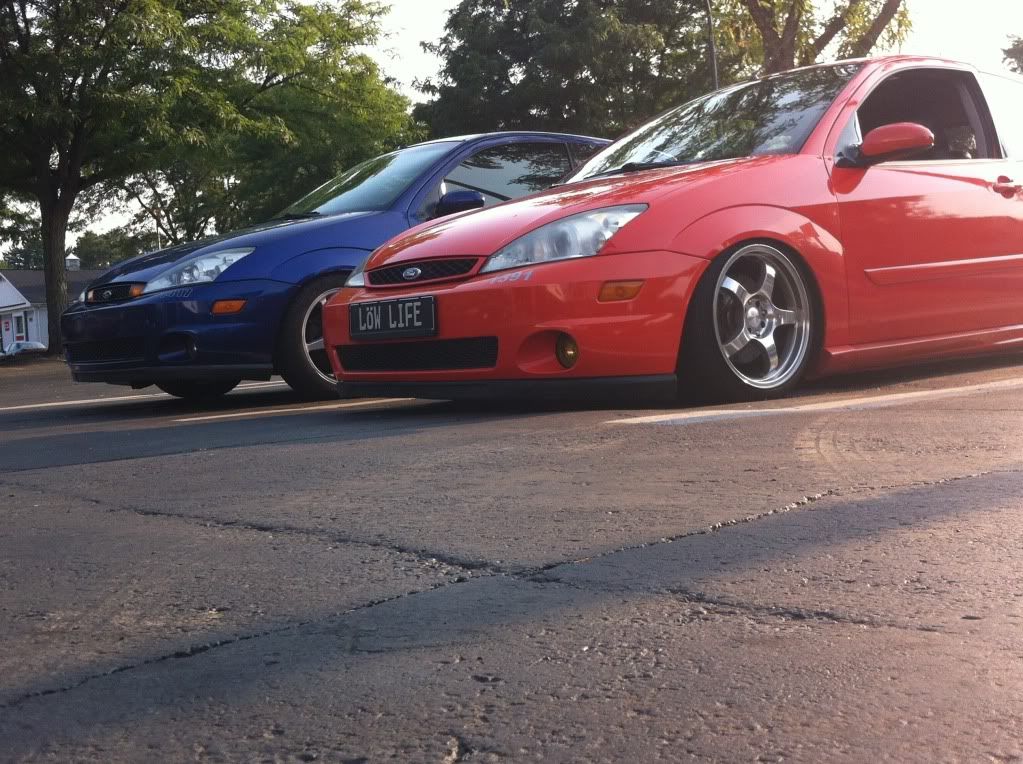

Next to a car on sportlines







New wheels coming soon

TQST33R

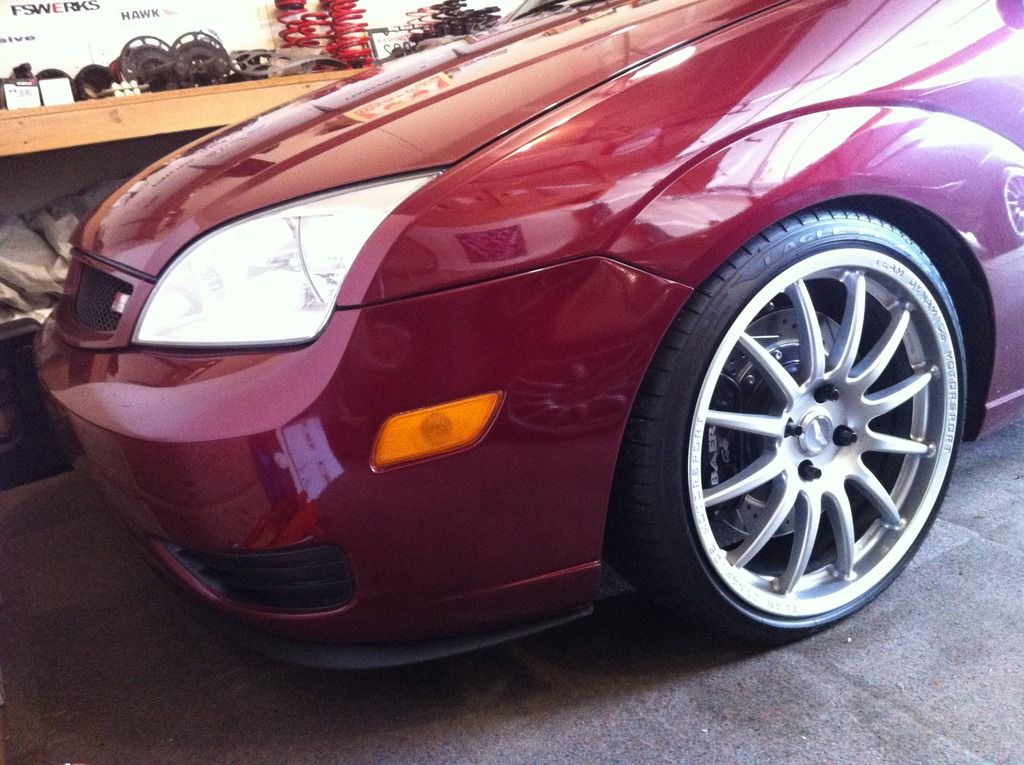

Wheel Brand/model/Spec(size/width/offset):
Team Dynamics PR1.2 in 18 x 8 et40 Front
Team Dynamics PR1.2 in 18 x 9 et35 Rear

Tire Brand/model/Spec:
Goodyear Eagle F1 Asymmetricos
Front 215/35 Rear 225/40

Suspension parts:
'00-'04 H & R Coilovers with Massive Omni Kit
H & R Coilover fronts with H & R 60mm 514# Linear Race Springs (180mm FL), FSWerks Camber Plates and Aluminum Top Hats
H & R Coilover rears with H & R 60mm 457# Linear Race Springs (140mmFL), Modified TCKline Motorsport 60mm Upper Spring Hats
H & R Front Swaybar on softer setting + Moog Front Endlinks
SPC Rear Camber Arms
Steeda Rear Swaybar
FSWerks Upper Front Stress Bar
FSWerks Lower Front Stress Bar
FSWerks Rear Stress Bar
Baer Big Brake Kit -- Front 330mm (PBR 2-Piston Calipers, 2pc rotors drilled/slotted)
Baer Big Brake Kit -- Rear 305mm (PBR Calipers, 1pc rotors drilled/slotted)
Custom Rear Dust Caps

Drop (fender heights are acceptable):
Front fenders at 23 3/4"
Rear fenders at 25"

Alignment spec:
Camber:
FL: -1.9° FR: -1.9°
RL: -.8° RR: -1.6°

Toe:
FL: 1/32" FR: 1/32"
RL: 1/16" RR: 1/32"

Instagram:
@04st170





Link to my build thread:
http://forums.focaljet.com/team-rig...-introducing-sord1d-chukkers-slightly-wanton-sorta-skanky-duratec-dd-build.html

Wheel Brand/model/Spec(size/width/offset): Simmons Type 670 16x8.25 et35 front, 16x8.75 et41 rear
Tire Brand/model/Spec: S Drive 195/45 Front, 205/45 Rear
Suspension parts: H&R Coilovers, Massive Toe Arms
Drop(fender heights are acceptable) and alignment spec (camber and TOE!): Natural camber, self adjusted toe. 21" Front, 21.5" Rear fender heights





Wheel Brand/model/Spec(size/width/offset): OZ Monte Carlo 17x8 et20
Tire Brand/model/Spec: Ohtsu FP7000 205 40 17
Suspension parts: H&R Coilovers, 448# Swift 60mm front springs, KMAC camber plates, Massive Camber/Toe Arms
Drop(fender heights are acceptable) and alignment spec (camber and TOE!): Maxed out plates/arms, self adjusted toe. 21.5" Front and Rear





Wheel Brand/model/Spec(size/width/offset): ATS Type 10 17x7.5 et35, 5mm rear spacer
Tire Brand/model/Spec: Ohtsu FP7000 205 40 17
Suspension parts: H&R Coilovers, Massive Toe Arms
Drop(fender heights are acceptable) and alignment spec (camber and TOE!): Natural camber, self adjusted toe. 21.5" Front and Rear




Wheel Brand/model/Spec(size/width/offset):
ESM 009R wheels, 16x8 front and 16x9 rear, et 30 all around

Tire Brand/model/Spec:

Federal evo 595 195/40r16 fronts, kumho ecsta 205/40r16 rear

Suspension parts:

KSPORT coilovers, ebay camber arms, dominant toe arms

Drop(fender heights are acceptable) and alignment spec (camber and TOE!):

Il get the measurements tonight, but i only have about 3/4 inch left to lower the front, and the rears have the adjusters removed

Camber---
Fronts are natural, no exact measurements
RL: -3.6° RR: -3.4°

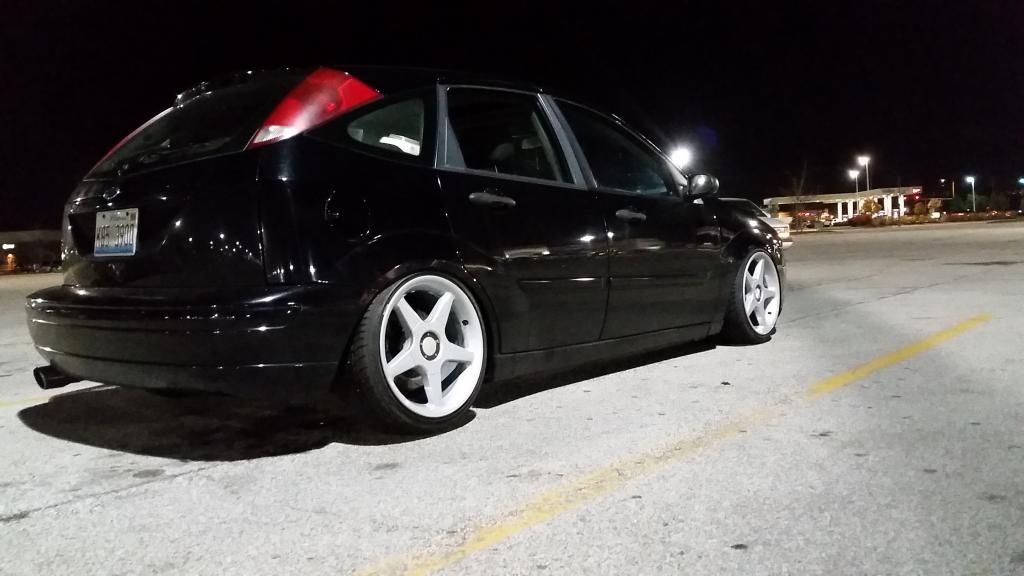

Edited with bottom pic with center caps
